GAF animation player base. More...

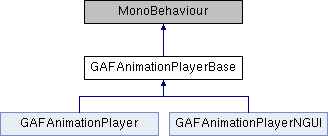

Inheritance diagram for GAFAnimationPlayerBase:

Public Member Functions
virtual void	Start ()

virtual void	Update ()

virtual void	GAFSetNextAnimation ()
	Sets the next animation. More...

virtual void	GAFSetPreviousAnimation ()
	Sets the previous animation. More...

virtual void	GAFSetAnimationByName (string name)
	Sets current animation by name. More...

virtual void	GAFSetAnimationByIndex (int index)
	Sets current animation by index. More...

virtual void	GAFResetElements ()
	Reset elements. More...

virtual void	GAFRewind ()
	Rewind current animation sequrnce to start. More...

virtual void	GAFSetAnimationToFrame (int fromFrame, int toFrame)
	Sets the animation to frame. More...

virtual void	GAFPlay ()
	Play animation. More...

virtual void	GAFStop ()
	Stop animation. More...

Public Attributes
List< PolygonVerts >	mOriginalVerts

List< string >	mOriginalVertsGo

Protected Member Functions
virtual void	ApplyMask ()
	Applies the mask. More...

virtual void	ApplyTransformations ()
	Applies the transformations. More...

virtual void	ApplyObjectAlpha ()
	Applies the object alpha. More...

virtual void	ApllyObjectBlur ()
	Apllies the object blur. More...

virtual void	ApplyColorTranformation ()
	Applies the color tranformation. More...

virtual void	ApplyTransformations (GAFState state, GameObject go)
	Applies the transformations. More...

virtual void	ApplyObjectAlpha (GAFState state, GameObject go)
	Applies the object alpha. More...

Protected Attributes
int	mCurrentSequenceIndex

bool	mPlayAutomatically = true

bool	mIsPlaying = false

bool	mWasInit = false

eGAFWrapMode	mWrapMode = eGAFWrapMode.Loop

Dictionary< string, GameObject >	mAnimatedObjects

GameObject	mCurrentGameObject

int	mCurrentFrame = -1

float	mPreviousTime

GAFState	mCurrentState

Dictionary< GameObject, List < GameObject > >	mBlurGos

Dictionary< GameObject, List < Material > >	mBlurMats

Properties
GAFAnimation	GAFAnimation `[get, set]`
	Gets or sets the GAF animation data. More...

int	GAFCurrentSequenceIndex `[get, set]`
	Gets or sets the index of the current sequence. More...

bool	GAFIsPlaying `[get]`
	Gets a value indicating whether this instance is playing. More...

bool	GAFPlayAutomatically `[get, set]`
	Gets or sets a value indicating whether animation is going to play on start. More...

int	GAFCurrentFrame `[get, set]`
	Gets or sets the current frame. More...

eGAFWrapMode	GAFWrapMode `[get, set]`
	Gets or sets the GAF wrap mode. More...

Detailed Description

GAF animation player base.

Member Function Documentation

virtual void GAFAnimationPlayerBase.ApllyObjectBlur ( )

protectedvirtual

Apllies the object blur.

virtual void GAFAnimationPlayerBase.ApplyColorTranformation ( )

protectedvirtual

Applies the color tranformation.

virtual void GAFAnimationPlayerBase.ApplyMask ( )

protectedvirtual

Applies the mask.

Reimplemented in GAFAnimationPlayerNGUI.

virtual void GAFAnimationPlayerBase.ApplyObjectAlpha ( )

protectedvirtual

Applies the object alpha.

virtual void GAFAnimationPlayerBase.ApplyObjectAlpha	(	GAFState	state,
		GameObject	go
	)

protectedvirtual

Applies the object alpha.

Use in editor scripts

Parameters

state	State.
go	Go.

virtual void GAFAnimationPlayerBase.ApplyTransformations ( )

protectedvirtual

Applies the transformations.

virtual void GAFAnimationPlayerBase.ApplyTransformations	(	GAFState	state,
		GameObject	go
	)

protectedvirtual

Applies the transformations.

Parameters

state	State.
go	Go.

virtual void GAFAnimationPlayerBase.GAFPlay ( )

virtual

Play animation.

virtual void GAFAnimationPlayerBase.GAFResetElements ( )

virtual

Reset elements.

Make them invisible, reset color shift and multiplication. Do not hide objects in editor mode

virtual void GAFAnimationPlayerBase.GAFRewind ( )

virtual

Rewind current animation sequrnce to start.

virtual void GAFAnimationPlayerBase.GAFSetAnimationByIndex ( int index)

virtual

Sets current animation by index.

If index is out of range do nothing.

Parameters

index Index.

virtual void GAFAnimationPlayerBase.GAFSetAnimationByName ( string name)

virtual

Sets current animation by name.

If name was not founded do nothing.

Parameters

name Name.

virtual void GAFAnimationPlayerBase.GAFSetAnimationToFrame	(	int	fromFrame,
		int	toFrame
	)

virtual

Sets the animation to frame.

Simulate animation at setted period.

Parameters

fromFrame	From frame.
toFrame	To frame.

virtual void GAFAnimationPlayerBase.GAFSetNextAnimation ( )

virtual

Sets the next animation.

If it is last animation set to first one.

virtual void GAFAnimationPlayerBase.GAFSetPreviousAnimation ( )

virtual

Sets the previous animation.

If it is first animation set to last

virtual void GAFAnimationPlayerBase.GAFStop ( )

virtual

Stop animation.

virtual void GAFAnimationPlayerBase.Start ( )

virtual

virtual void GAFAnimationPlayerBase.Update ( )

virtual

Member Data Documentation

Dictionary<string, GameObject> GAFAnimationPlayerBase.mAnimatedObjects

protected

Dictionary<GameObject,List<GameObject> > GAFAnimationPlayerBase.mBlurGos

protected

Dictionary<GameObject,List<Material> > GAFAnimationPlayerBase.mBlurMats

protected

int GAFAnimationPlayerBase.mCurrentFrame = -1

protected

GameObject GAFAnimationPlayerBase.mCurrentGameObject

protected

int GAFAnimationPlayerBase.mCurrentSequenceIndex

protected

GAFState GAFAnimationPlayerBase.mCurrentState

protected

bool GAFAnimationPlayerBase.mIsPlaying = false

protected

List<PolygonVerts> GAFAnimationPlayerBase.mOriginalVerts

List<string> GAFAnimationPlayerBase.mOriginalVertsGo

bool GAFAnimationPlayerBase.mPlayAutomatically = true

protected

float GAFAnimationPlayerBase.mPreviousTime

protected

bool GAFAnimationPlayerBase.mWasInit = false

protected

eGAFWrapMode GAFAnimationPlayerBase.mWrapMode = eGAFWrapMode.Loop

protected

Property Documentation

GAFAnimation GAFAnimationPlayerBase.GAFAnimation

getset

Gets or sets the GAF animation data.

The gaf animation.

int GAFAnimationPlayerBase.GAFCurrentFrame

getset

Gets or sets the current frame.

The current frame.

int GAFAnimationPlayerBase.GAFCurrentSequenceIndex

getset

Gets or sets the index of the current sequence.

The index of the current sequence.

bool GAFAnimationPlayerBase.GAFIsPlaying

get

Gets a value indicating whether this instance is playing.

true if this instance is playing; otherwise, false.

bool GAFAnimationPlayerBase.GAFPlayAutomatically

getset

Gets or sets a value indicating whether animation is going to play on start.

true if play automatically; otherwise, false.

eGAFWrapMode GAFAnimationPlayerBase.GAFWrapMode

getset

Gets or sets the GAF wrap mode.

The GAF wrap mode.

The documentation for this class was generated from the following file:

D:/PROJECTS/UnityGAFPlayer/UnityGAFPlayer/Library/sfw2gaf_unity3d/Assets/Scripts/GAFConverter/Unity/GAFAnimationPlayerBase.cs
